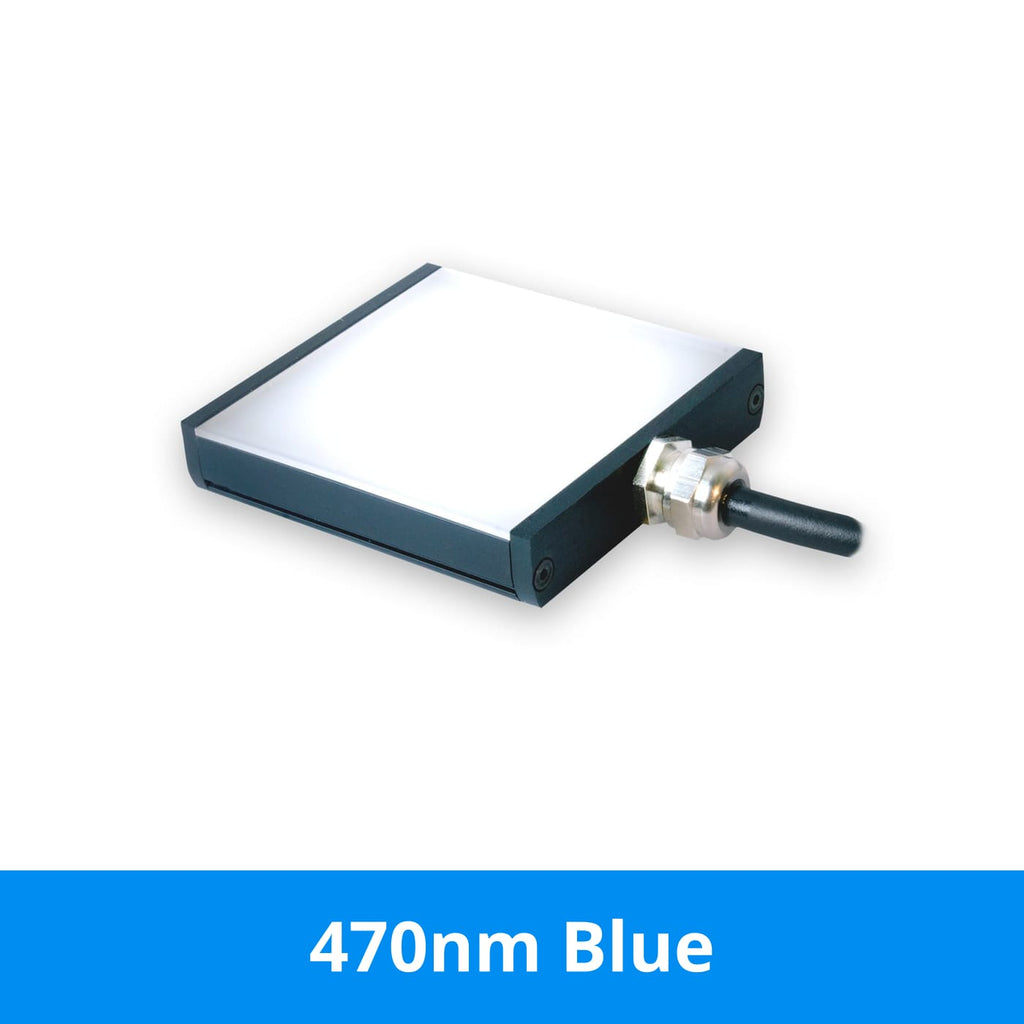

BL12814-470IC | BL12814 Back Light, 14" x 14", 470nm Blue iCS2 - IC

Name: BL12814-470IC | BL12814 Back Light, 14" x 14", 470nm Blue iCS2 - IC
Brand: Advanced Illumination
SKU: BL12814-470IC
Price: 2187.00 USD
Availability: InStock

Advanced IlluminationSKU: BL12814-470IC

Lead Time: 20 Business Days

Price:

$2,187.00 USD

Quantity:

Share this product

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

The BL128 Series of Compact Backlights provide edge to edge illumination in a 12mm thick housing. The BL128 length is expandable in 1" (25mm) increments up to 14.4" (366.8mm). Optional washdown version is IP65 compliant.

Technical Specifications

Country

Province

Zip code

Length	14.99 in / 380.7 mm
Width	3.08 in / 78.3 mm
Height	0.5 in / 12.7 mm
Cable Length	79 in / 2000 mm
Active Length	14.19 in / 360.48 mm
Active Width	14.19 in / 360.48 mm
Product Weight	1.39 lbs / 0.63 kg

Stock Location	Built to Order
Product Lifecycle	Active
Standard Lead Time	20 days

Connector Type	Flying Leads
Connectorized At Light	Hardwired

Driver Nomenclature	iCS2 - IC
Driver Included	Included
Driver Location	In Line

Voltage	24 VDC V
Max Input Power Constant On	28.8 W
Max Duty Cycle	100 %

BL12814-470IC | BL12814 Back Light, 14" x 14", 470nm Blue iCS2 - IC

Product Downloads

Lead Times

Description

Technical Specifications

Estimate shipping

BL12814-470IC | BL12814 Back Light, 14" x 14", 470nm Blue iCS2 - IC

Collimated	Not Collimated
Wavelength	470nm Blue
Diffused	Not Diffused
Polarized	Not Polarized
Lens Angle	N/A

Operation Modes	Constant On, Constant On – Dimmable
Strobe Trigger Input	Constant On Only
Intensity Adjustment Type	Analog Voltage
Daisy Chain	No
Direct Connect	No

Housing Material	Aluminum
Mounting Method	Tapped Holes
IP Rating	IP50

Compliances	CE, RoHS, IEC 62471
Warranty	5 Years

Country of Origin	United States
HTS Code	8539.52.00.00
