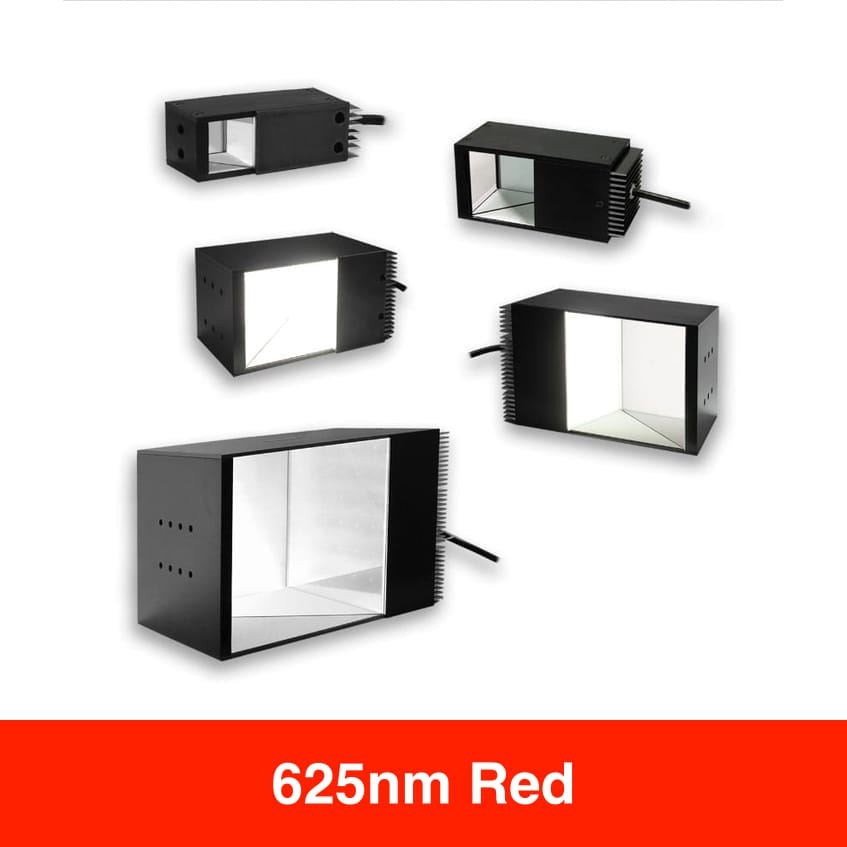

DL225-150625IC | DL225 Coaxial Light, 625nm Red iCS2 - IC

Name: DL225-150625IC | DL225 Coaxial Light, 625nm Red iCS2 - IC
Brand: Advanced Illumination
SKU: DL225-150625IC
Price: 7944.00 USD
Availability: InStock

Advanced IlluminationSKU: DL225-150625IC

Lead Time: 10 Business Days

Price:

$7,944.00 USD

Quantity:

Share this product

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Imported bar lights — DL225150

Technical Specifications

Country

Province

Zip code

Quick Delivery Worldwide

Machine Vision Direct offers built to order products, many of which can ship within 0-3 working days.

Try Before You Buy

Machine Vision Direct offers Smart Vision Lights generous 45 day trial period. Contact us if you are interested in trying a light.

Top-Notch Support

Need Assistance with specifying or customizing any of our products? Contact us to talk to one of our Automation Engineers!

Secure Payments

MVD Accepts all major credit cards as well as Net Terms.

Length	9.11 in / 231.3 mm
Width	6.35 in / 161.3 mm
Height	6.43 in / 163.4 mm
Cable Length	79 in / 2000 mm
Active Length	5.98 in / 152 mm
Active Width	6.06 in / 154 mm
Product Weight	6.59 lbs / 2.99 kg

Stock Location	Built to Order
Product Lifecycle	Active
Standard Lead Time	10 days

Min Operating Temp	25°C / 77°F
Max Operating Temp	60°C / 140°F

Connector Type	Flying Leads
Connectorized At Light	Hardwired

Driver Nomenclature	iCS2 - IC
Driver Included	Included
Driver Location	In Line

DL225-150625IC | DL225 Coaxial Light, 625nm Red iCS2 - IC

Product Downloads

Lead Times

Description

Technical Specifications

Estimate shipping

DL225-150625IC | DL225 Coaxial Light, 625nm Red iCS2 - IC

You may also like

Recently viewed

Voltage	24 VDC V
Max Input Power Constant On	26.2 W
Max Duty Cycle	100 %

Collimated	Not Collimated
Wavelength	625nm Red
Diffused	Not Diffused
Polarized	Not Polarized
Lens Angle	N/A

Operation Modes	Constant On, Constant On – Dimmable
Strobe Trigger Input	Constant On Only
Intensity Adjustment Type	Analog Voltage
Daisy Chain	No
Direct Connect	No

Housing Material	Aluminum
Mounting Method	Tapped Holes
IP Rating	IP67

Country of Origin	United States
HTS Code	8539.52.00.00
