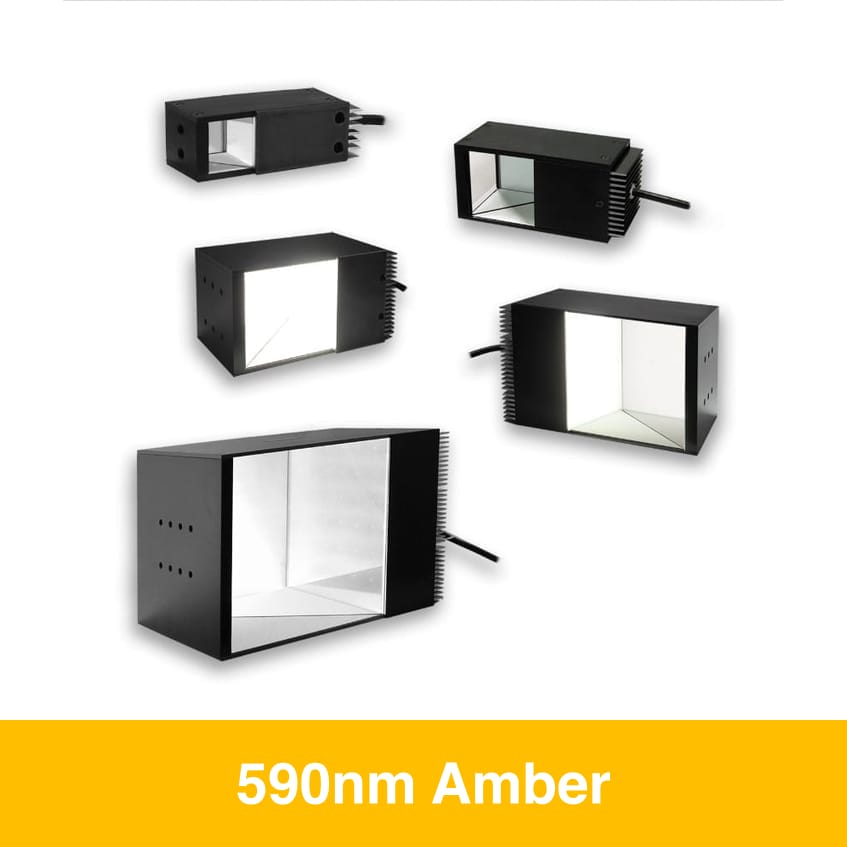

DL225-050590I3 | DL225 | Advanced Illumination Coaxial Light, 590nm Amber iCS3 - I3

Name: DL225-050590I3 | DL225 | Advanced Illumination Coaxial Light, 590nm Amber iCS3 - I3
Brand: Advanced Illumination
SKU: DL225-050590I3
Price: 1424.00 USD
Availability: InStock

Advanced IlluminationSKU: DL225-050590I3

Lead Time: 10 Business Days

Price:

$1,424.00 USD

Quantity:

Share this product

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Imported bar lights — DL225

Technical Specifications

Country

Province

Zip code

Quick Delivery Worldwide

Machine Vision Direct offers built to order products, many of which can ship within 0-3 working days.

Try Before You Buy

Machine Vision Direct offers Smart Vision Lights generous 45 day trial period. Contact us if you are interested in trying a light.

Top-Notch Support

Need Assistance with specifying or customizing any of our products? Contact us to talk to one of our Automation Engineers!

Secure Payments

MVD Accepts all major credit cards as well as Net Terms.

Length	0.04 in / 1 mm
Width	1.27 in / 32.2 mm
Height	0.79 in / 20 mm
Cable Length	79 in / 2000 mm
Active Length	2.27 in / 57.66 mm
Active Width	1.07 in / 27.19 mm
Product Weight	0.6 lbs / 0.27 kg

Stock Location	Built to Order
Product Lifecycle	Active
Standard Lead Time	10 days

Min Operating Temp	25°C / 77°F
Max Operating Temp	60°C / 140°F

Connector Type	Flying Leads
Connectorized At Light	Hardwired

Driver Nomenclature	iCS3 - I3
Driver Included	Included
Driver Location	In Line

DL225-050590I3 | DL225 | Advanced Illumination Coaxial Light, 590nm Amber iCS3 - I3

Product Downloads

Lead Times

Description

Technical Specifications

Estimate shipping

DL225-050590I3 | DL225 | Advanced Illumination Coaxial Light, 590nm Amber iCS3 - I3

You may also like

Recently viewed

Voltage	24 VDC V
Max Input Power Constant On	1 W
Max Overcurrent Strobe Current	1 mA
Max Overcurrent Strobe Latency	1 us
Max Overcurrent Strobe Duration	1 ms
Max Overcurrent Strobe Frequency	1 Hz
Max Overcurrent Strobe Duty Cycle	1 %
Min Overcurrent Strobe Duration	1 ms
Max Overcurrent Strobe Input Power	1 W
Max Duty Cycle	100 %
PNP Trigger Voltage	4-24 VDC V
NPN Trigger Voltage	< 1 VDC V

Collimated	Not Collimated
Wavelength	590nm Amber
Diffused	Not Diffused
Polarized	Not Polarized
Lens Angle	N/A

Operation Modes	Constant On, Constant On – Dimmable, Overcurrent Strobe, Overcurrent Strobe - Dimmable
Strobe Trigger Input	PNP Trigger
Intensity Adjustment Type	Analog Voltage
Daisy Chain	No
Direct Connect	No

Housing Material	Aluminum
Mounting Method	Tapped Holes
IP Rating	IP67

Compliances	CE, RoHS, IEC 62471
Warranty	1 Year

Country of Origin	United States
HTS Code	8539.52.00.00
