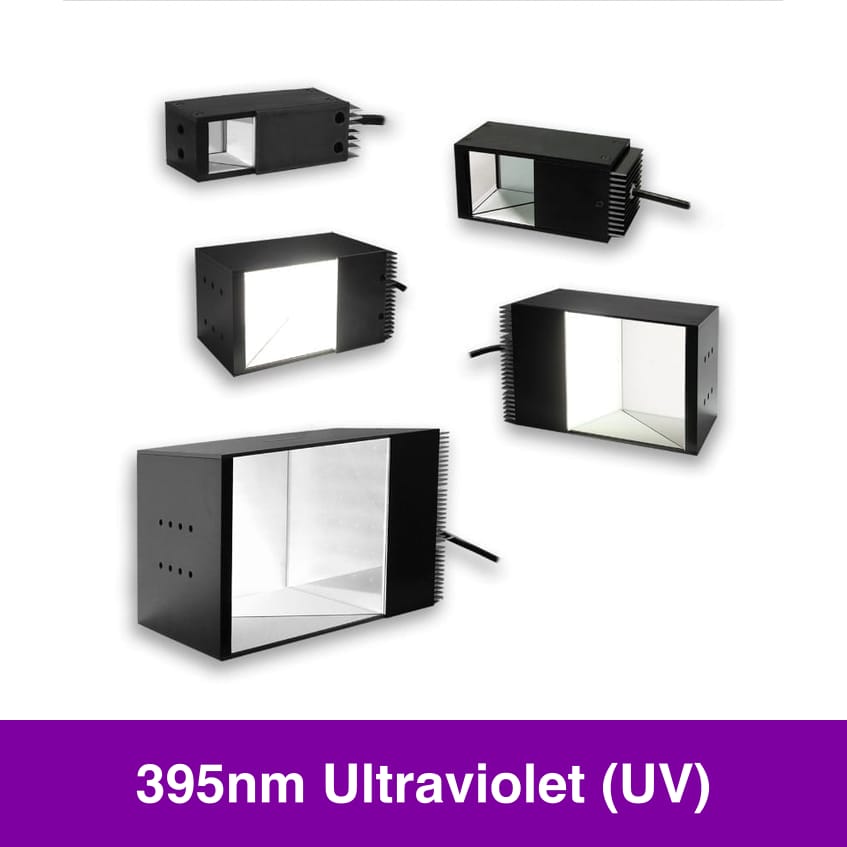

DL225-05039524 | DL225 Coaxial Light, 395nm Ultraviolet (UV) 24V

Name: DL225-05039524 | DL225 Coaxial Light, 395nm Ultraviolet (UV) 24V
Brand: Advanced Illumination
SKU: DL225-05039524
Price: 1339.00 USD
Availability: InStock

Advanced IlluminationSKU: DL225-05039524

Lead Time: 10 Business Days

Price:

$1,339.00 USD

Quantity:

Share this product

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Imported bar lights — DL225050

Technical Specifications

Country

Province

Zip code

Quick Delivery Worldwide

Machine Vision Direct offers built to order products, many of which can ship within 0-3 working days.

Try Before You Buy

Machine Vision Direct offers Smart Vision Lights generous 45 day trial period. Contact us if you are interested in trying a light.

Top-Notch Support

Need Assistance with specifying or customizing any of our products? Contact us to talk to one of our Automation Engineers!

Secure Payments

MVD Accepts all major credit cards as well as Net Terms.

Length	5.05 in / 128.3 mm
Width	2.36 in / 59.9 mm
Height	2.22 in / 56.5 mm
Cable Length	79 in / 2000 mm
Active Length	2.05 in / 52 mm
Active Width	2.05 in / 52 mm
Product Weight	0.93 lbs / 0.42 kg

Stock Location	Built to Order
Product Lifecycle	Active
Standard Lead Time	10 days

Min Operating Temp	25°C / 77°F
Max Operating Temp	60°C / 140°F

Connector Type	Flying Leads
Connectorized At Light	Hardwired

Driver Nomenclature	24V
Driver Included	No Driver Required
Driver Location	No Driver

DL225-05039524 | DL225 Coaxial Light, 395nm Ultraviolet (UV) 24V

Product Downloads

Lead Times

Description

Technical Specifications

Estimate shipping

DL225-05039524 | DL225 Coaxial Light, 395nm Ultraviolet (UV) 24V

You may also like

Recently viewed

Voltage	24 VDC V
Max Input Power Constant On	5.8 W
Max Duty Cycle	100 %

Collimated	Not Collimated
Wavelength	395nm Ultraviolet (UV)
Diffused	Not Diffused
Polarized	Not Polarized
Lens Angle	N/A

Operation Modes	Constant On
Strobe Trigger Input	Constant On Only
Intensity Adjustment Type	None
Daisy Chain	No
Direct Connect	No

Housing Material	Aluminum
Mounting Method	Tapped Holes
IP Rating	IP67

Country of Origin	United States
HTS Code	8539.52.00.00
